ARCHITECTURE OF A PEPPER
DEVELOPING ARCHITECTURAL LANGUAGE FOR AN ORGANIC OBJECT
Developing a visual narrative for an organic object: DRAWING PROCESS

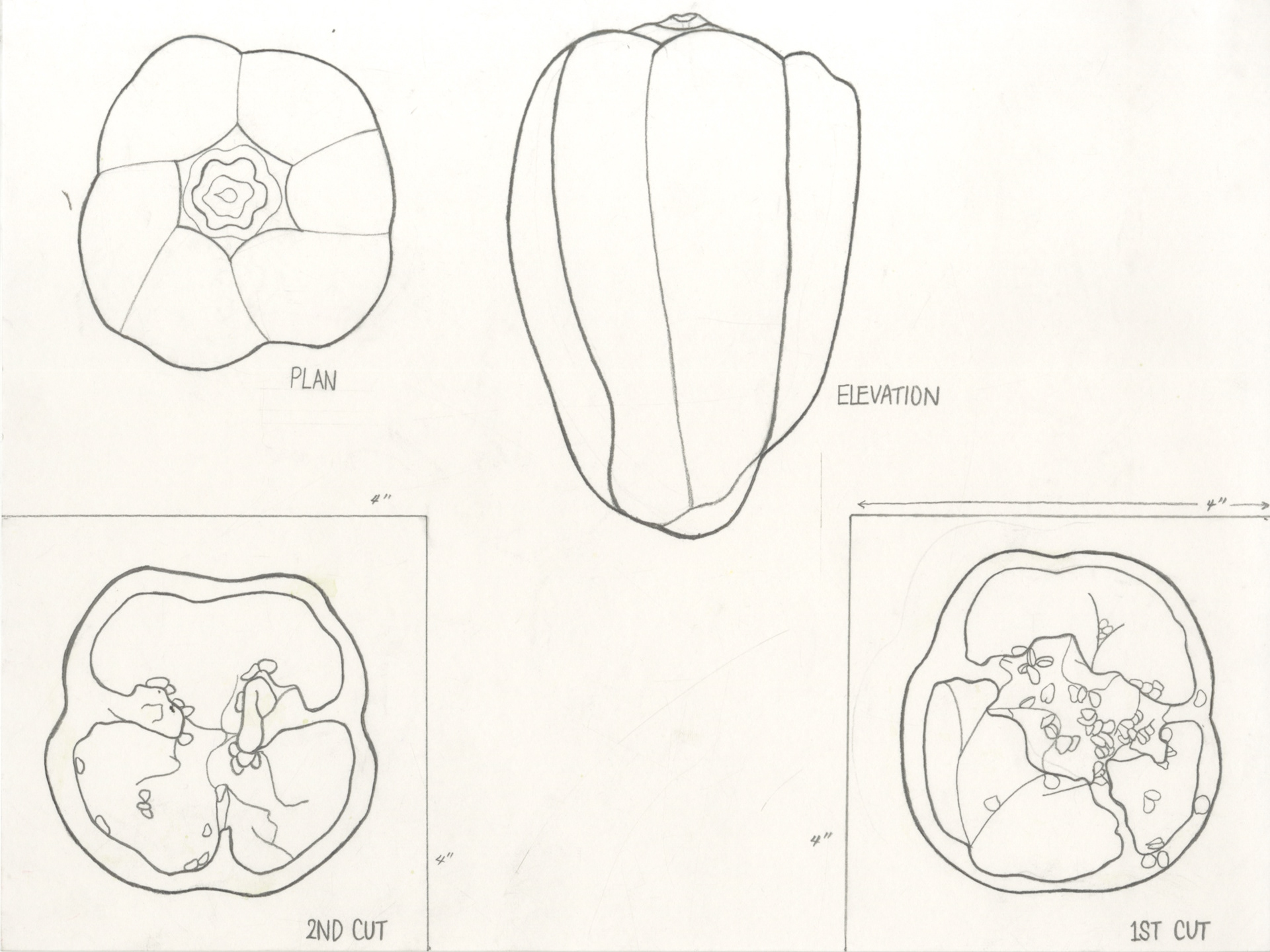

1. Hand drawings using graphite: Facing the pepper directly, I first drew the pepper in elevation. Viewing down upon the pepper, I then drew the pepper in (site) plan.

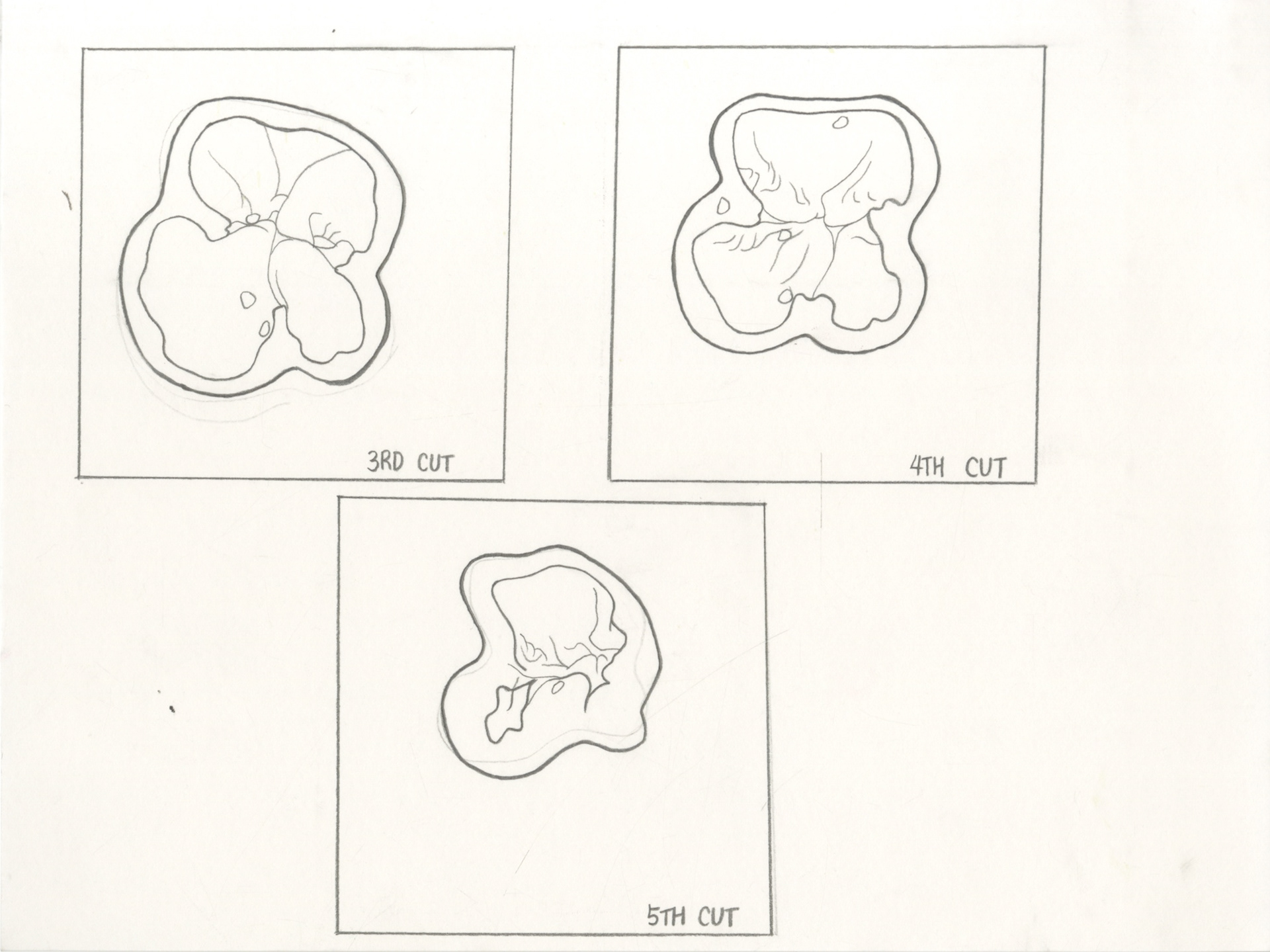

2. Hand drawn sections from 5 parallel slices: I sliced the pepper vertically into five different sections. I then drew each section of the pepper in a plan view.

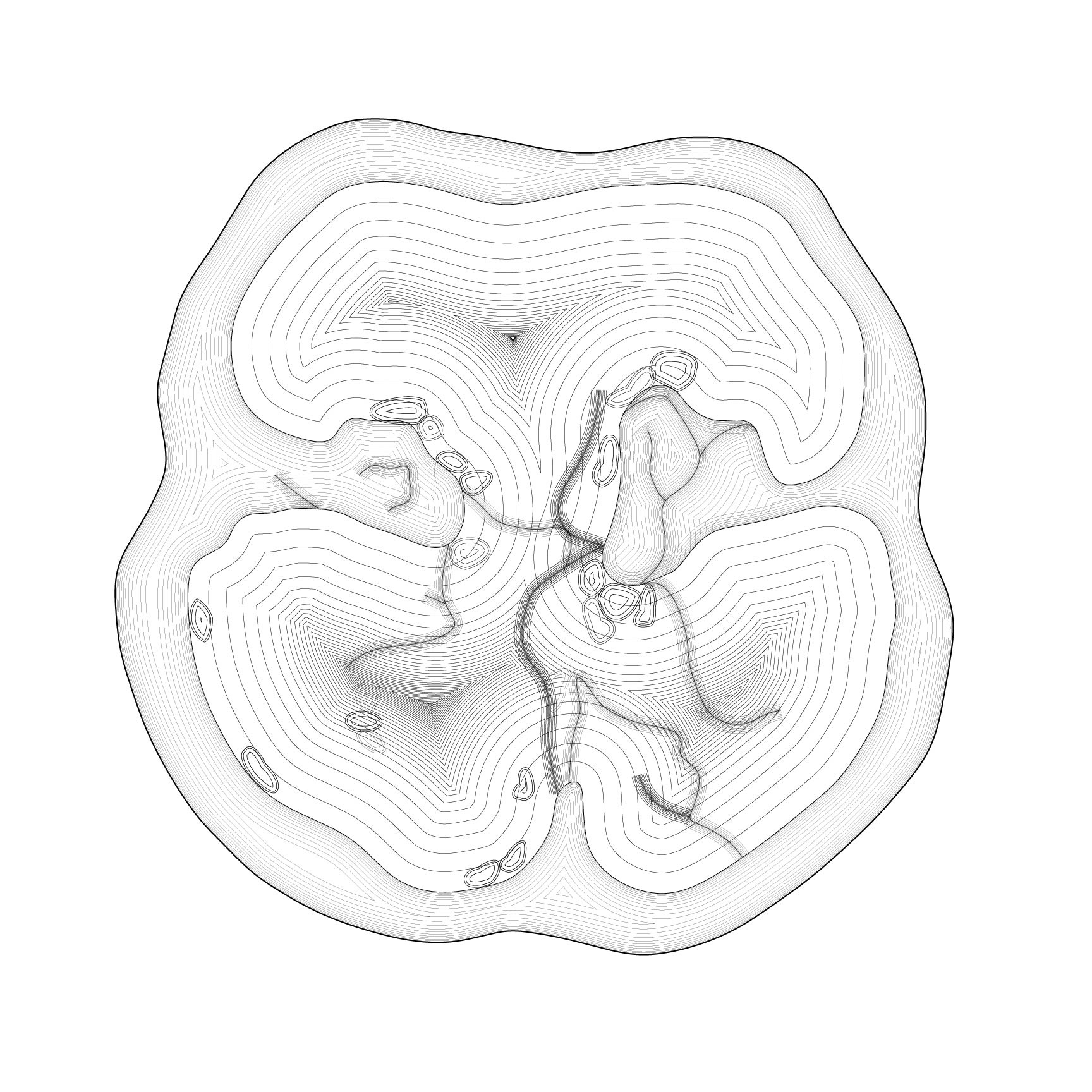

3. Digital transfer: I scanned each of the hand drawing as a separate file and imported them in Rhino 3D with 'pictureframe' command. In Rhino 3D, I traced each hand drawings in a true scale (1:1) with curves and lines.

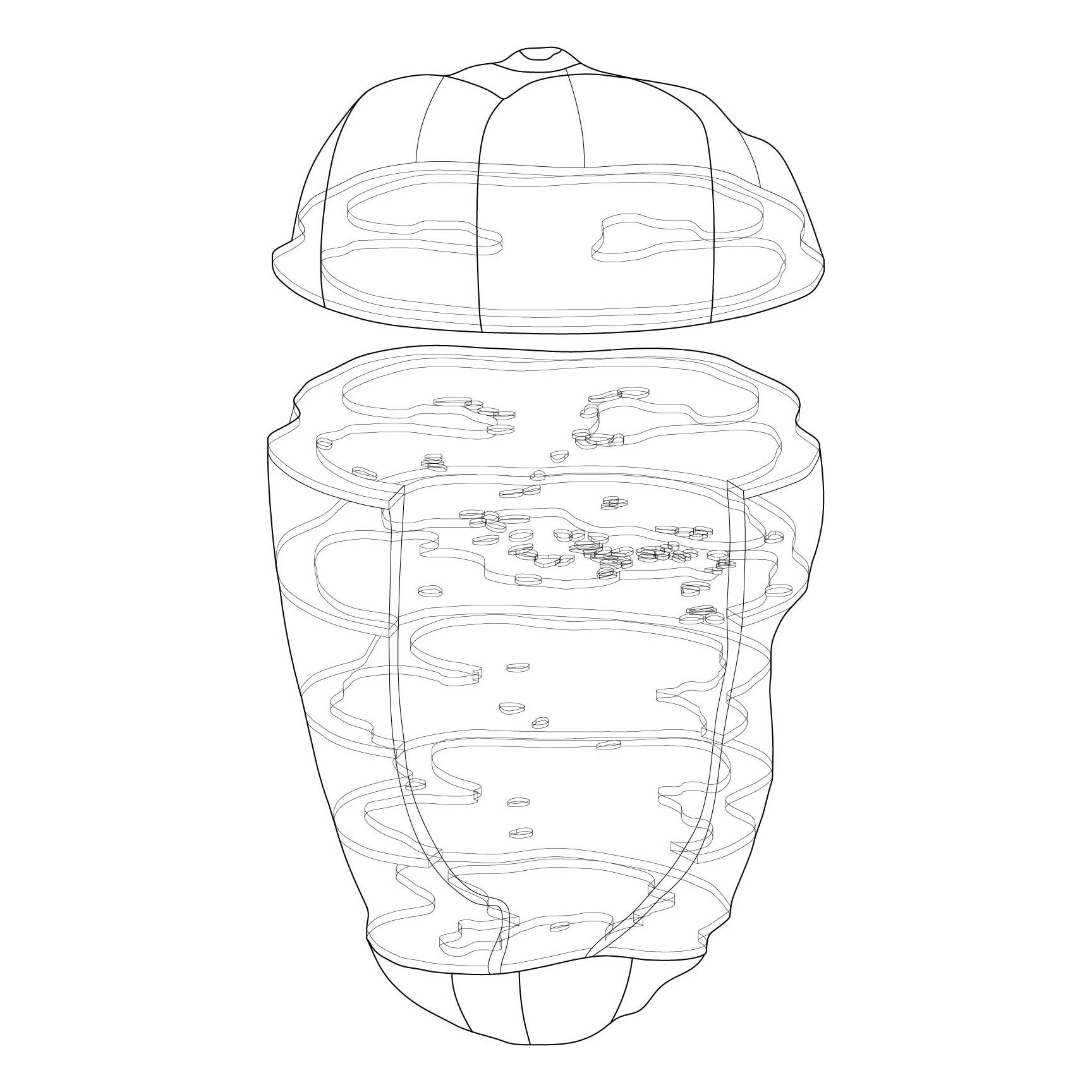

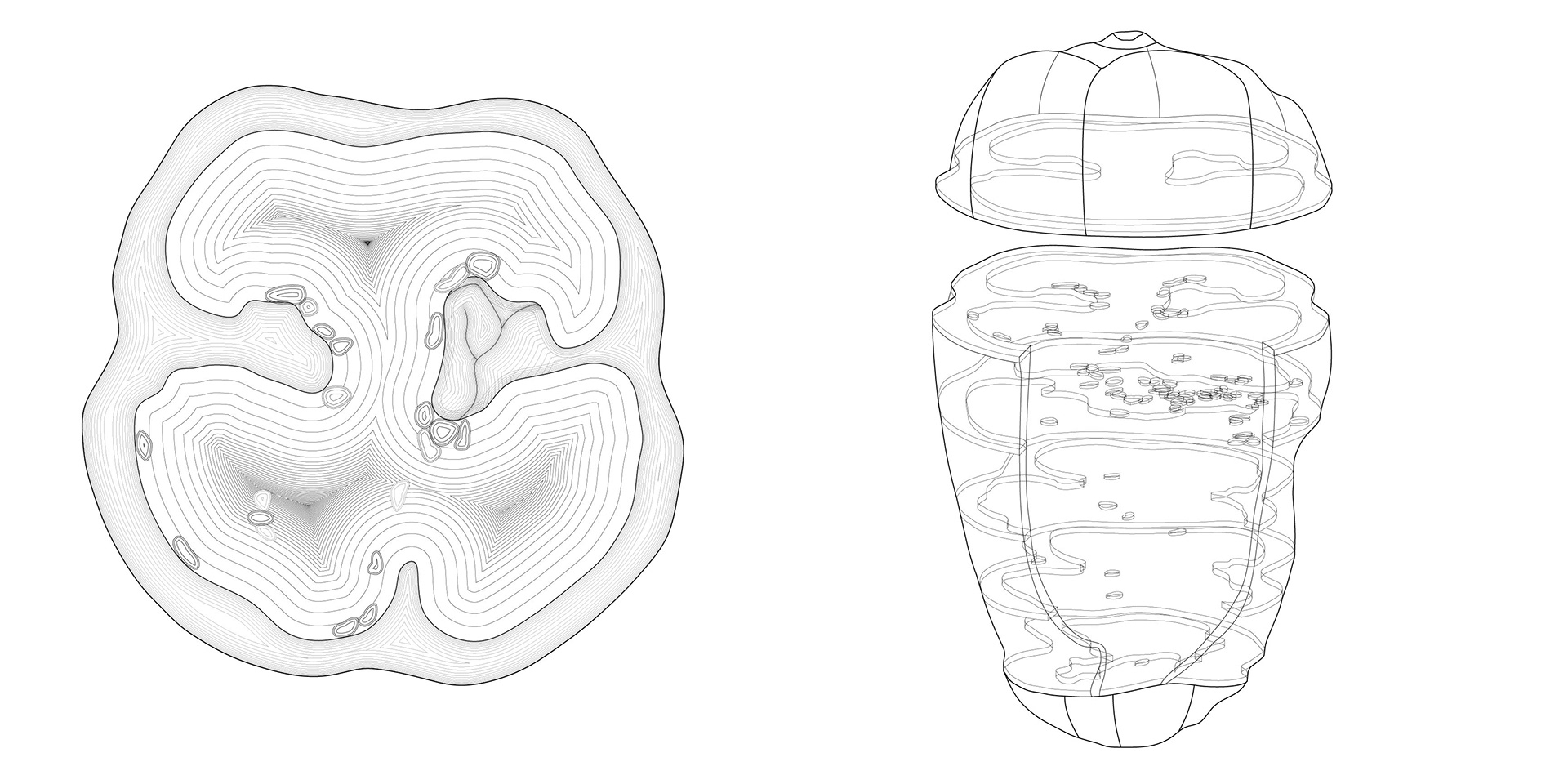

4. Digital projection: I placed all 7 line drawings in correct 3D position to show the correct volume and height of the pepper.
![](https://cdn.myportfolio.com/2fcaac082e075ddc69814a4a0484d274/8a075bf0-1402-4642-a2d2-6d3ba952b1a3_rw_1920.jpg?h=f9a24123f0dae852273d4219dd9a413c)
![](https://cdn.myportfolio.com/2fcaac082e075ddc69814a4a0484d274/e44ee473-c7c9-4c0d-8dbc-b901ac7f7076_rw_1920.jpg?h=6dd6ef6b98d09ee898a23312129e298b)
![](https://cdn.myportfolio.com/2fcaac082e075ddc69814a4a0484d274/6c6c521b-e7eb-4ed6-a0a5-876263bcc310_rw_1920.jpg?h=67bfe7209cb3185420b1370c8a321b00)
![](https://cdn.myportfolio.com/2fcaac082e075ddc69814a4a0484d274/92e523b4-7394-49c7-9167-5ffe7205cbd5_rw_1920.jpeg?h=67372a2ec230f5478a91c1c24d6a2c5b)
![](https://cdn.myportfolio.com/2fcaac082e075ddc69814a4a0484d274/9e65713f-55a9-4fba-a173-7c609c5c3446_rw_1920.jpeg?h=fc2d82fb1c05e80a7146ab0e6f8049ba)
Hand drawings and digital drawings
2018
